Lim-Tec presented a new range of SCB/SCA series Actuator for high load linear motion solutions.Combined the advantages of Linear actuator and Screw Jack to achieve the high load lifting in industry application.The sealed and high protection class allow the actuator work even in harsh environments. Which is a good solution for Hydraulic and Pneumatic replacement to reduce cost and pollution.

　 Synchronized Lifting, 2-18 pieces Actuator could be driven by one motor for Synchronized lifting with 0.1mm accuracy. Simple operation but reliable. Please 　 contact Lim-Tec engineering for synchronized lifting system design.

　 Alternative SCB ball screw actuator and SCA acme screw actuator.
　 Load capacity from 2 ton to 20 ton , could be classified as 2 ton, 5 ton , 8 ton , 10 ton , 20 ton unit.

　 Max. speed and stroke could reach 100mm/s and 2.5m. Duty cycle 50%.

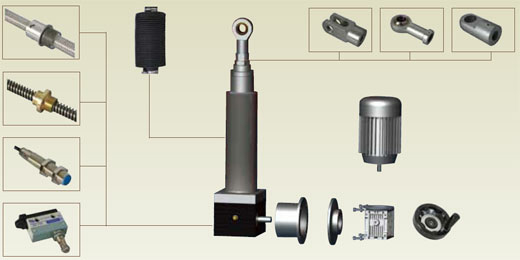

　 The SC series Actuator can be ordered to accept the motor type of your choice, whether gear motor,or AC motor etc. The SC series offers flexibility in order to accept any type to meet your requirement.

Applications of synchronized lifting：

Lim-Tec provided complete system design and components, Which including Actuator , motor, gear box, shaft, coupling , brake , clutch etc
Customer just need let us know your requirement of total load capacity, speed, stroke and dimension, Lim-Tec engineering will provided you a design scheme with calculation process and components selection, CAD drawing is also available.

LAY-OUT Synchronized Lifting system of Two Actuators

Synchronized Lifting system of Four Actuators
