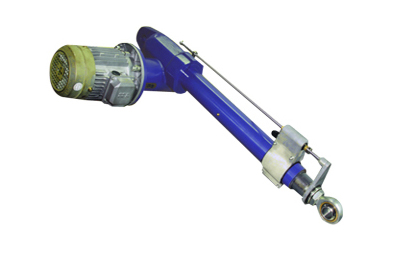

LBP Ball Screw Linear Actuator

Contains long-life grease, maintenance-free

Turn down to see more+

LIM-TEC LINEAR ACTUATOR

High strength/high wear-resisting material selection, high-precision parts processing, advanced design shell concept , high bearing capacity, impact resistance, low noise, long life of high quality products, to be able to work in bad industrial environment. Acme Screw Linear Actuator LAP Series (duty cycle 30%) and ball screw Linear Actuator LBP series (100% duty cycle ) Linear Actuator is driven by 12/24/36/48 v dc motor, 220/380 v single-phase/three-phase ac motor, stepping motor, servo motor, explosion-proof motor, gear motor, etc.

Linear actuator driven by 12/24 v dc motor, 220/380 v single/three-phase ac motor, stepping motor, servo motor, explosion-proof motor, gear motor, etc.
According to the self-locking coefficient, define the self-locking performance, can realize the absolute synchronization linear actuator , with encoder can realize more precision positioning (position accuracy 0.1 mm), the accessories is numerous, can be suitable for all kinds of special occasions.
Working environment temperature 5 ℃ to 40 ℃, if you need -40 ℃ to + 70 ℃, consulting local office.
Protection grade: IP54, IP55, (IP56, IP65, IP66), insulation class: F (H)
long-life grease, maintenance-free.

DC Linear Actuator LBP

LBP22- LBP40
Load range：to 0.8 ton
High speed：58mm/s
Voltage：12/24VDC
AC Linear Actuator LBP

LBP22- LBP56
Load range：to 2.5 ton
High speed：78mm/s
Voltage：380/220VAC
Heavy Linear Actuator LBP

LBP63 - LBP200
Load range：to 20 ton
High speed：80mm/s
Voltage：380/220VAC

LBP series Linear Actuator Parameter Table - with 24VDC motor

Type	Speed mm/s	Rated load N	Ratio	Motor	Rated current A	Self-locking factor	Weight kg	Add Weight per stroke 100mm	Down-load
LBP22	12.5-16.5	900	N1	DC24V	4.2	0.49	2	0.3	Down-load
LBP22	6.5-8.5	1400	L1	DC24V	4.5	0.36	2	0.3	Down-load
LBP25	16-20	2000	N1	DC24V	9.6	0.49	3.2	0.4	Down-load
LBP25	8-10	2700	L1	DC24V	9.5	0.37	3.2	0.4	Down-load

LBP series Linear Actuator Parameter Table - with AC 3-phase motor

Type	Speed mm/s	Rated load N	Ratio	Motor	Rated current A	Weight kg	Add Weight per stroke 100mm	Down-load
LBP22	15	900	N1	0.06kW 2800 380V 50HZ	0.49	2	0.3	Down-load
LBP22	7.5	1400	L1	0.06kW 2800 380V 50HZ	0.36	2	0.3	Down-load
LBP25	18.6	2000	N1	0.09kW 2800 380V 50HZ	0.49	3.2	0.4	Down-load
LBP25	9.3	2700	L1	0.09kW 2800 380V 50HZ	0.37	3.2	0.4	Down-load
LBP32	58	1500	H1	0.18kW 2800 380V 50HZ	0.56	5.8	0.5	Down-load
	37	2200	V1	0.18kW 2800 380V 50HZ	0.56
	29	2400	H1	0.12kW 1400 380V 50HZ	0.56
	18.5	3500	N1	0.18kW 2800 380V 50HZ	0.48
	9.3	4400	N1	0.12kW 1400 380V 50HZ	0.48
	4.6	4500	L1	0.12kW 1400 380V 50HZ	0.37
LBP35	58	2600	V1	0.25kW 2800 380V 50HZ	0.56	7.4	0.8	Down-load
	29	3400	V1	0.18kW 1400 380V 50HZ	0.56
	14.5	4500	N1	0.25kW 2800 380V 50HZ	0.43
	9.7	5400	L1	0.25kW 2800 380V 50HZ	0.34
	7.2	5400	N1	0.18kW 1400 380V 50HZ	0.43
	4.8	5500	L1	0.18kW 1400 380V 50HZ	0.34
LBP40	46.6	4800	V1	0.55kW 2800 380V 50HZ	0.56	13	0.9	Down-load
	23.3	5800	V1	0.37kW 2800 380V 50HZ	0.56
	11.6	7200	N1	0.55kW 2800 380V 50HZ	0.38
	9.3	7600	L1	0.55kW 2800 380V 50HZ	0.36
	5.8	8000	N1	0.37kW 1400 380V 50HZ	0.38
	4.6	8000	L1	0.37kW 1400 380V 50HZ	0.36
LBP56	78	12500	V1	1.5kW 2800 380V 50HZ	0.56	50	2	Down-load
	39	15500	V1	1.5kW 1400 380V 50HZ	0.56
	26	18000	N1	1.5kW 2800 380V 50HZ	0.43
	18.5	20000	L1	1.1kW 2800 380V 50HZ	0.37	40
	13	22000	N1	0.75kW 1400 380V 50HZ	0.43
	9.3	25000	L1	0.75kW 1400 380V 50HZ	0.37
LBP200	80	85KN	H2	11kW 1400 380V 50HZ	0.55	470	13	Down-load
	64	105KN	H1	11kW 1400 380V 50HZ	0.55
	54	85KN	H2	7.5kW 950 380V 50HZ	0.43
	43	105KN	H1	7.5kW 950 380V 50HZ	0.55
	40	165KN	N2	11kW 1400 380V 50HZ	0.46
	32	190KN	N1	11kW 1400 380V 50HZ	0.46
	27	165KN	N2	7.5kW 950 380V 50HZ	0.46
	21.5	190KN	N1	7.5kW 950 380V 50HZ	0.46
	20	190KN	L2	7.5kW 1400 380V 50HZ	0.40	450
	16	200KN	L1	7.5kW 1400 380V 50HZ	0.40
	13.5	200KN	L2	5.5kW 950 380V 50HZ	0.40
	10.5	200KN	L1	5.5kW 950 380V 50HZ	0.40
